Thermal Insulation Boards
Mantoyap
White EPS Thermal Insulation Board
The EPSA Mantoyap White EPS Thermal Insulation Board is a high-performance thermal insulation material based on expanded polystyrene (EPS), featuring a closed-cell structure and composed of 98% stationary dry air. This product is manufactured by expanding polystyrene beads and fusing them into a solid block, offering high insulation value, low thermal conductivity, and cost-effectiveness, making it a widely preferred choice in the industry. Combining insulation performance with economic efficiency, Mantoyap provides a reliable solution that enhances energy efficiency in buildings.
Advantages
- Saves energy and reduces fuel consumption.
- Provides a comfortable indoor environment with high thermal insulation.
- Contributes to protecting buildings from external factors and extends their lifespan.
- Lightweight and easy to install, offering labor advantages.
- Environmentally friendly, helping to reduce the carbon footprint.
- Carbonizes in case of fire and features self-extinguishing properties.
- Resistant to water and provides capillary water tightness.
- Breathable due to its fine porous structure.
- Prevents thermal bridges and maintains insulation integrity through full surface contact.
- Economic and long-lasting insulation system.
Our products are manufactured in accordance with EN 13163 and TS 825 standards and are certified with quality documents such as TSE, CE, and ISO.
Technical Specifications
| UNIT | DESCRIPTION | TOLERANCE | STANDARD | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Expanded Polystyrene Board | EPS-TSEN | TS EN 13163 | |||||||||
| Density | kg/m³ | 16 | -1 | - | ||||||||
| Width x Length | mm | 500 × 1000 |
± 2 mm (W2) ± 2 mm (L2) |
TS EN 822 | ||||||||
| Thickness | mm | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | ± 1 mm (T2) | TS EN 823 |
| Reaction to fire class | - | E | - | TS EN 13501-1 | ||||||||
| Declared thermal conductivity (10°C) | W/mK | 0.039 | - | TS EN 13163 | ||||||||
| Thermal resistance | m²K/W | 0.75 | 1.00 | 1.25 | 1.50 | 1.75 | 2.05 | 2.55 | 3.05 | 3.55 | - | TS EN 13163 |
| Maximum service temperature | °C | 75 | - | - | ||||||||
| Dimensional stability (warping) | mm/m | S2 | 2 mm/m | TS EN 824 | ||||||||
| Flatness | mm/m | P4 | ± 5 mm/m | TS EN 825 | ||||||||
| Dimensional stability | % | DS(N)2 | ± 0.2% | TS EN 1605 | ||||||||
| Flexural strength (min) | kPa | BS 100 | - | TS EN 12089 | ||||||||
| Compressive strength (min) | kPa | CS(10)60 | - | TS EN 826 | ||||||||
| Compressive creep | kPa | 10 | CC(2/1.5/2/10)10 | TS EN 1606 | ||||||||
| Tensile strength on surfaces (min) | kPa | TR100 | - | TS EN 1607 | ||||||||
| Long-term water absorption by full immersion | % | WL(T)2 | ≤ 2% | TS EN 12087 | ||||||||
| Dimensional stability under specific temperature and humidity conditions | % | DS(70,90)1 | ≤ 1.0% | TS EN 1604 | ||||||||
| Capillary absorption | - | None | - | - | ||||||||
| Curing time | - | Cured 4 weeks as block and 2 weeks as board. | - | - | ||||||||
| Packaging material | - | Plastic bag | - | - | ||||||||
| Packaging quantity | pcs-m²/package | 16-8 | 12-6 | 10-5 | 8-4 | 7-3.5 | 6-3 | 5-2.5 | 4-2 | 3-1.5 | - | - |
Mantoyap Delivery Dimensions (16 DNS

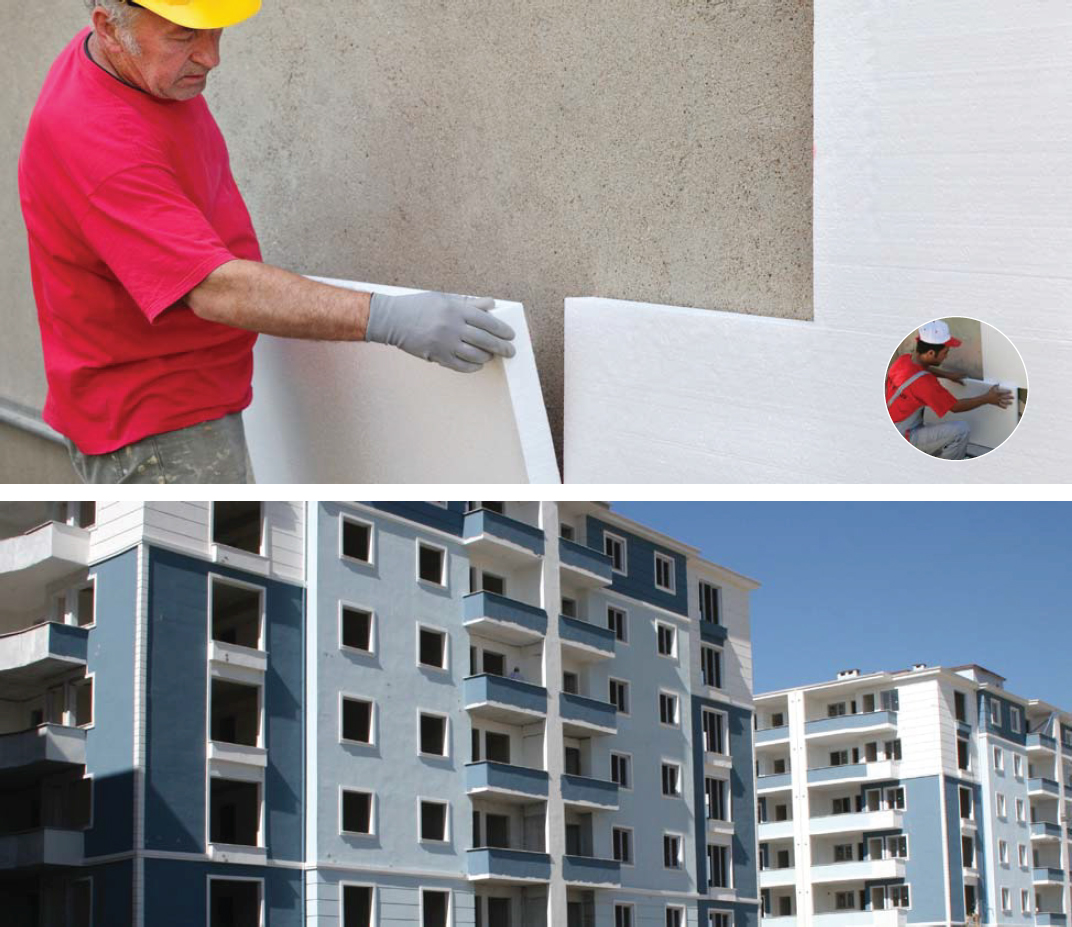

Application Areas
Mantoyap White EPS Thermal Insulation Board
- Saves energy and reduces fuel consumption.
- Provides a comfortable indoor living environment with high thermal insulation.
- Contributes to protecting buildings from external factors and extends their lifespan.
- Lightweight and easy to apply; offers labor efficiency.
- Environmentally friendly; helps reduce carbon footprint.
- Charcoals and self-extinguishes in case of fire.
- Resistant to water and provides capillary waterproofing.
- Breathable due to its fine porous structure.
- Prevents thermal bridges and maintains insulation integrity through full surface contact.
- Economic and long-lasting insulation system.
