Carbon-Reinforced EPS Thermal Insulation Board
EPSA Mantoyap Carbon-Reinforced Thermal Insulation Board is a high-performance product based on expanded polystyrene (EPS) with special graphite additives, providing superior thermal insulation.
Thanks to the graphite particles, it reflects radiant heat from the sun, reducing thermal conductivity and offering up to 20% higher insulation efficiency compared to standard EPS.
Its closed-cell structure ensures excellent adhesion to the application surface; it does not lose thickness over time and maintains its thermal insulation performance for many years.
Our products are manufactured in accordance with EN 13163 and TS 825 standards and are certified with quality documents such as TSE, CE, and ISO.
Main Features
- Provides energy and fuel savings with high thermal insulation performance
- Prevents thermal bridges, offering comfortable living spaces
- Contributes to the protection of buildings against external factors
- Thermal conductivity value (λ) remains constant and does not deteriorate over time
- Resistant to pressure, offers high bending strength
- Thickness does not decrease over time, maintains dimensional stability
- Allows buildings to breathe with low vapor diffusion resistance
- Carbonizes during fire and has a self-extinguishing feature
- Reduces carbon dioxide emissions, offering an eco-friendly solution
- Easy and economical to apply
Technical Specifications
| UNIT | DESCRIPTION | TOLERANCE | STANDARD | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Expanded Polystyrene Board (Carbon-Reinforced) | EPS-TS | TS EN 13163 | |||||||||
| Density | kg/m³ | 16 | -1 | - | ||||||||
| Width x Length | mm |
500 1000 |
± 2 mm (W2) ± 2 mm (L2) |
TS EN 822 | ||||||||
| Thickness | mm | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | ± 1 mm (T2) | TS EN 823 |
| Reaction to fire class | - | E | - | TS EN 13501-1 | ||||||||
| Declared thermal conductivity (10°C) | W/mK | 0.032 | - | TS EN 13163 | ||||||||
| Thermal resistance | m²K/W | 0.90 | 1.25 | 1.55 | 1.85 | 2.15 | 2.50 | 3.10 | 3.75 | 4.35 | - | TS EN 13163 |
| Maximum service temperature | °C | 75 | - | - | ||||||||
| Deviation from squareness | mm/m | S2 | ± 2 mm/m | TS EN 824 | ||||||||
| Surface flatness | mm/m | P4 | ± 5 mm/m | TS EN 825 | ||||||||
| Dimensional stability | % | DS(N)2 | ± %0.2 | TS EN 1605 | ||||||||
| Bending strength (min.) | kPa | BS 100 | - | TS EN 12089 | ||||||||
| Compressive strength (min.) | kPa | CS(10)60 | - | TS EN 826 | ||||||||
| Compressive creep | kPa | 10 | CC(2.5/2/10)10 | TS EN 1606 | ||||||||
| Long-term water absorption by immersion | % | WL(T)2 | ≤ %2 | TS EN 12087 | ||||||||
| Dimensional stability under specific temperature and humidity | % | DS(70,90)1 | ≤ %1.0 | TS EN 1604 | ||||||||
| Capillary absorption | - | None | - | - | ||||||||
| Conditioning time | - | 4 weeks in block and 2 weeks in board form | - | - | ||||||||
| Packaging material | - | Nylon bag | - | - | ||||||||
| Packaging quantity | pcs-m²/package | 16-8 | 12-6 | 10-5 | 8-4 | 7-3.5 | 6-3 | 5-2.5 | 4-2 | 3-1.5 | - | - |
Mantoyap Delivery Sizes (16 DNS - 30 DNS range)
| Thickness | Size | Package | Pcs | m² | m³ |
|---|---|---|---|---|---|
| 2 cm | 50×100 | 1 | 25 | 12.5 | 0.25 |
| 3 cm | 50×100 | 1 | 16 | 8 | 0.24 |
| 4 cm | 50×100 | 1 | 12 | 6 | 0.24 |
| 5 cm | 50×100 | 1 | 10 | 5 | 0.25 |
| 6 cm | 50×100 | 1 | 8 | 4 | 0.24 |
| 7 cm | 50×100 | 1 | 7 | 3.5 | 0.245 |
| 8 cm | 50×100 | 1 | 6 | 3 | 0.24 |

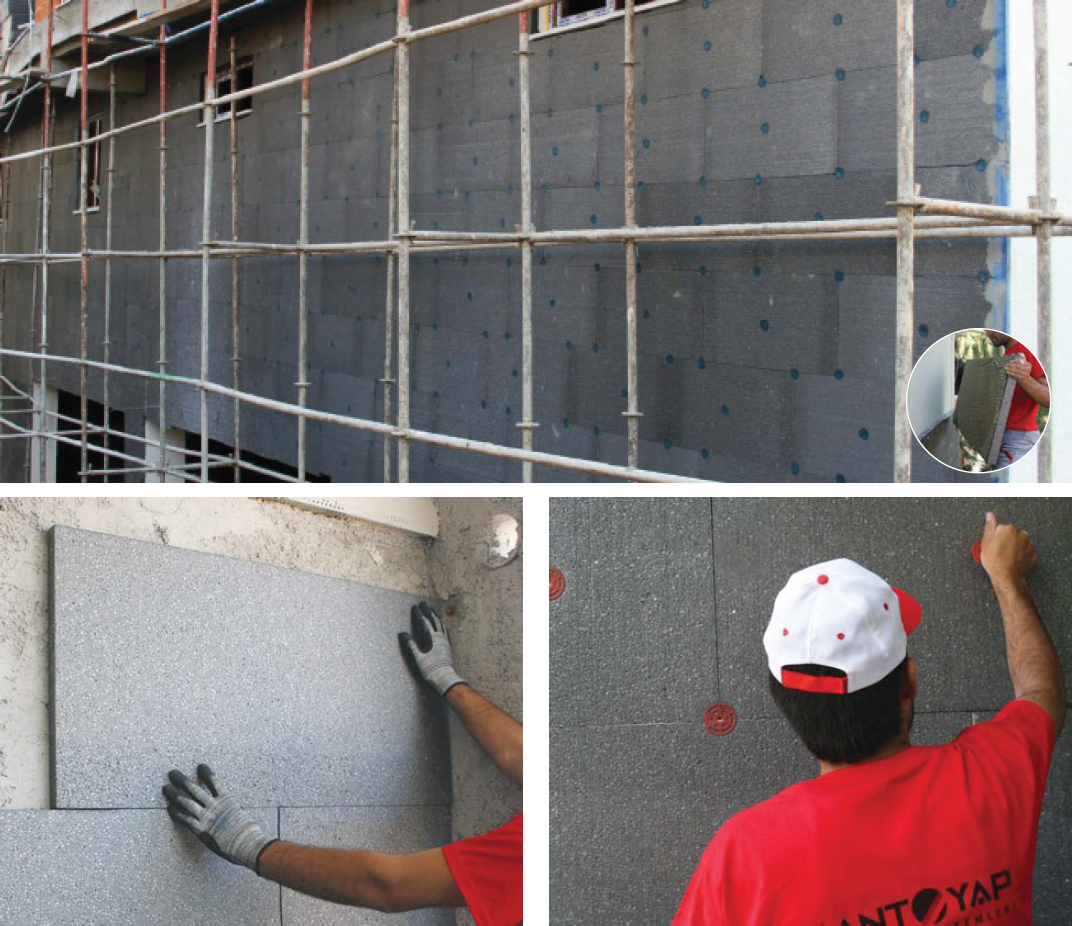

Application Areas
Mantoyap Carbon-Reinforced EPS Thermal Insulation Board
It is safely used in thermal insulation systems for both interior and exterior surfaces, primarily in external façade insulation (ETICS).
